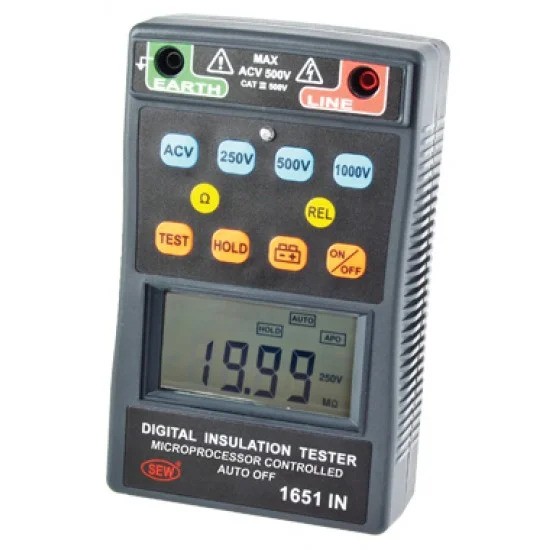

Description
? Microprocessor-controlled.
? ACV auto-detection function on 3 insulation
ranges (250/500/1000V) and low ? ragne before
pressing the TEST button.
? 68 x 34mm large LCD display.
? 3? digital LCD (2000 counts) a LCD indicated
instrument for insulation(M?), continuity (?) and
AC voltage.
? Three insulation test voltages(DC V) : 250V, 500V,
1000V.
? Auto ranging.
? Auto power off function.
? Auto data hold function.
? Rel function (ohm only)
? Continuity buzzer.
? External AC voltage warning.
? Automatic circuit discharge.
? BS 16th edition.
| Test voltage | 250V / 500V / 1000V | |
| Measuring ranges (Auto ranging) |
0-20.00MΩ 0-200.0MΩ 0-2000MΩ |
|
| Output voltage open circuit |
Rated test voltage +10% | |
| Accuracy | 20MΩ : ±(1.5%rdg+2dgt) 200MΩ : ±(2.5%rdg+2dgt) 2000MΩ : ±(5%rdg+3dgt) |
|
| Resolution | 0-20.00MΩ : 10kΩ 0-200.0MΩ : 100kΩ 0-2000MΩ : 1MΩ |
|
| Output current | 1mA DC | |
| AC Voltage | ||
| Range | 0-600V | |
| Resolution | 1V | |
| Accuracy | ±(1.5%rdg+3dgt) | |
| Continuity | ||
| Ranges | 20Ω / 200Ω / 2000Ω | |
| Resolution | 0-20Ω : 0.01Ω 0-200Ω : 0.1Ω 0-2000Ω : 1Ω |
|
| Short circuit terminal current |
> 200mA DC | |
| Accuracy | 20Ω : ±(2%rdg+4dgt) 200Ω : ±(1.5%rdg+2dgt) 2000Ω : ±(1.5%rdg+2dgt) |
|
| Buzzer sounds | Below 10Ω | |
| General | ||
| Dimensions | 163(L) × 102(W) × 50(D)mm | |
| Weight (battery included) |
Approx. 470g | |
| Power source | 1.5V (AA ) × 6 | |
| Safety standard | EN 61010-1 CAT III 600V IEC 61557-1 IEC 61557-2 EN 61326-1 |
|
