Description
? Microprocessor-controlled.
? Measures the voltage drop as if 16A was flowing between Line and
Neutral.
? Displays voltage without current (V at 0A).
? Display voltage as if 16A flowing between Line and Neutral (V at
16A).
? Loop test for L-E
? PSC between L-N.
? Single one smart push button operation; ON, Scroll through results
and menus.
? Checks wiring integrity (LEDs).
? Auto off/auto ranging (software range).

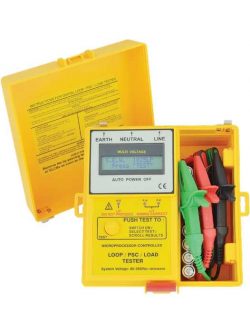

? Combined prospective short circuit current, loop and load tester.
? Display can be customized for large orders
| Loop impedance range L-E | 0.03-2000Ω (software ctrl) | |
| Test currents in each loop | 11.76A at 230V / 50Hz | |
| Voltage measurement L-N | 50 to 280V AC (Sine) | |
| Load current for volt drop (L-N) |
16A (Calculation) | |
| Neutral wire resistance | (Not available, see 1826 NA) | |
| Line wire resistance & transformer windings |
(Not available, see 1826 NA) | |
| PSC current (L-N) max | 6kA at 230Vac supply | |
| PSC current (L-E) max | (Not available, see 1826 NA) | |
| Operating voltage | 230V±20V at 50Hz Sine | |
| Typical Accuracy | ||
| Loop impedance | ±5%rdg ± 2dgt | |
| PSC current | ±12%rdg ± 5dgt | |
| Voltage | ±3%rdg ±1dgt | |
| Operating-temperature -humidity |
-10°C to +40°C 80% Max. relative humidity |
|
| Dimensions | 170(L) x 165(W) x 92(D)mm | |
| Weight (battery included) | Approx. 970g | |
| Power source | 1.5V (AA) x 8 | |
| Safety standard | EN 61010-1 CAT III 300V EN 61326-1 |
|
