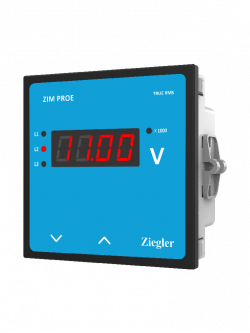

Digital AC Voltmeter / Ammeter Ziegler

Description

A Digital meter measure and display a single line quantity at a time and can be replaced with an analogue mter. It is capable of measuring and displaying individual parameters like Voltage / Current

ZIM PROE

Product Features

• True RMS measurement
• 4 Digits LED display
• Onsite programming for Primary and Secondary of CT and PT
• Accuracy class: 0.5
• User-selectable 3Ø – 3/4W
• Wide auxiliary supply
• Available in 1Ø or 3Ø
• User-selectable 3Ø – 3/4W
• AC Voltmeter : 100 – 500V LL (3Ø – 3/4W) or 57.5 – 300V LN
  (1Ø – 2W) or 600V LN (Fixed – 1Ø – 2W)
• AC Ammeter : 1A or 5A onsite programmable
• Onsite selection of Auto scroll / Fixed Screen : 3Ø – 3/4W
• Auxiliary supply : 40 – 300V AC/DC or 20 – 40V AC / 20 – 60V DC
• Size : 48
