Digital Power Monitoring Meter – Basic Ziegl

Description

Power monitoring meters measure important AC electrical parameters in 1Ø and 3Ø systems. It measures all electrical parameters including Demand, RPM, Run hours, On hours, and No. of interruptions

ZAM PSAF / ZAM PVIF / ZAM PLEI / ZAM ENEO

     Product Features

• True RMS measurement
• On-site programming for Primary and Secondary of CT and PT
• User-selectable 3Ø – 3/4W / 1Ø – 2W Network
• Wide auxiliary Power Supply 40 – 300V AC/DC or 12 – 48V DC
• Self-powered aux. available (ZAM PSAF / ZAM PLEI / ZAM ENEO)
• Fast & Easy Installation on the panel with self clicking arrangement
• Storage of MIN / MAX values
• Measurement & Display of RPM, Run hours, On hours, No. of interruption
• Onsite selection of Auto scroll / Fixed Screen
• Limit / Pulse switch (optional)
• RS485 MODBUS communication (optional – ZAM ENEO)

< 55mm standard / 62mm with mounted optional accessory

• Size : 96 x 96mm

     ZAM PSAF / ZAM PVIF – VAF Meter

• Measure & Display Voltage, Current, Frequency
• ZAM PSAF : 3 Line 4 Digit display
• ZAM PVIF : 3 Line 3 Digit display
• ZAM PSAF : Single Line display with % indicating load
• Input Voltage :100 – 500V LL (57.7 – 290V LN)
• Accuracy Class : 1
• Limit Switch (optional)
• ZAM PVIF : Power Supply 40 – 300V AC/DC or
  20 – 40V AC / 20 – 60V DC

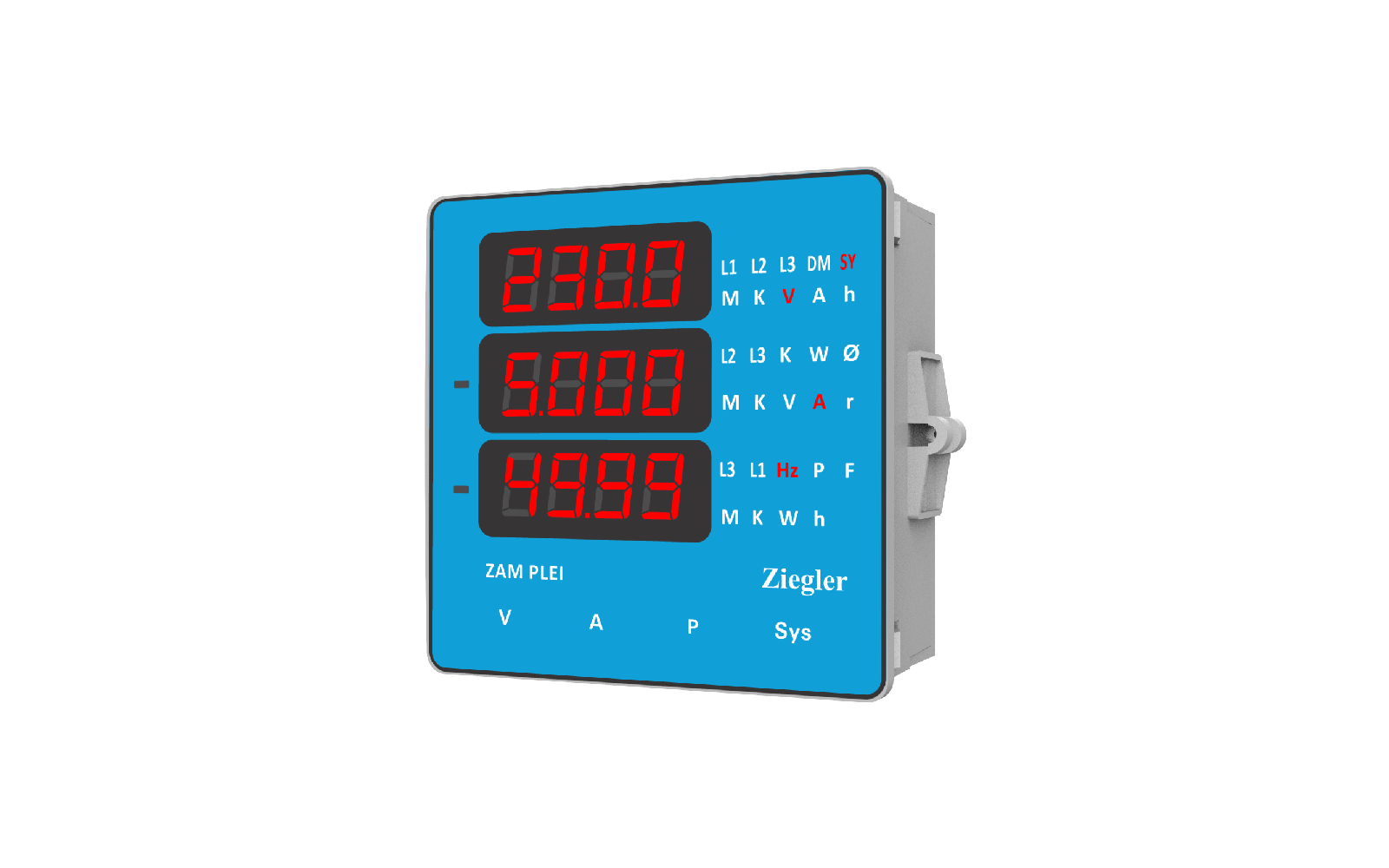

     ZAM PLEI / ZAM ENEO (Power / Energy Meter)

• Measure & Display Voltage, Current, Frequency, Power
• Demand & Energy Measurement (ZAM ENEO)
• Programmable Energy format & Energy rollover count (ZAM ENEO)
• Input Voltage : 100 – 500V LL (57.7 – 290V LN)
• Accuracy Class: 1
• Limit Switch (option
• Limit / Pulse switch (optional – ZAM ENEO)
• RS485 MODBUS communication (optional – ZAM ENEO)
• Configuration of Instrument via MODBUS

<
