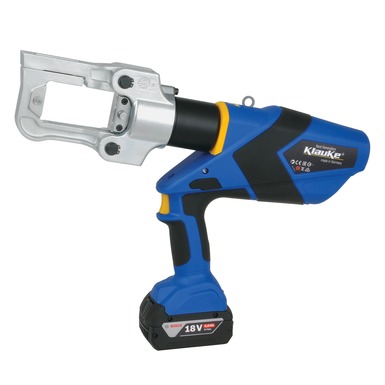

EK 120 UNV Battery-powered hydraulic universal tool 10 – 400 m

Description

• One head for crimping, cutting, and punching – one tool for all
• Ideal in the assembly field where all common jobs can be carried out using one tool


  Crimping force	108 kN
  Stroke	42 mm
  Crimping range	10 – 400 mm²
  Crimping cycle	Depending on cable type
  Cutting range	max. 40 mm dia. mm
  Number of cuts	Depending on cable type
  Punching capacity	to 144 mm dia. round; to 138 x 138 mm square
  Battery voltage	18 V
  Battery capacity	5.0 Ah, Li-Ion
  Battery charging time	45 min.
  Weight	6.5 kg
  Ambient temperature	-10 °C to +40 °C

  MAKITA BATTERY SYSTEM

  Crimping force	108 kN
  Stroke	42 mm
  Crimping range	10 – 400 mm²
  Crimping cycle	Depending on cable type
  Cutting range	max. 40 mm dia. mm
  Number of cuts	Depending on cable type
  Punching capacity	to 144 mm dia. round; to 138 x 138 mm square
  Battery voltage	18 V
  Battery capacity	4.0 Ah, Li-Ion
  Battery charging time	36 min.
  Weight	6.5 kg
  Ambient temperature	-10 °C to +40 °C
