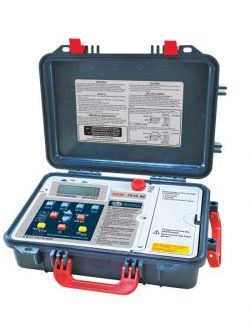

SEW 7016 IN Digital H.V. Insulation Tester(15kV)

Description

ϠProtection class: IP66 (Lid closed)
? Test insulation resistance up to 30T? (30000G?).
? Short-circuit current up to 5mA
? Microprocessor controlled.
? 30 insulation test voltages :
500V,?1kV,?1.5kV,?2kV,?2.5kV,?3kV,
3.5kV,?4kV,?4.5kV,?5kV,?5.5kV,?6kV,
6.5kV,?7kV,?7.5kV,?8kV,?8.5kV,?9kV,
9.5kV,?10kV,?10.5kV,?11kV,?11.5kV,?12kV,
12.5kV,?13kV,?13.5kV,?14kV,?14.5kV,?15kV
? AC/DC voltmeter (600V).
? PI (Polarization Index) indication.
? DAR (Dielectric Absorption ratio) indication.
? Auto-ranging on all insulation ranges.
? Backlight function.
? Menu-driven.
? Visual and audible warning if an external voltage is present. (e30Vac or e30Vdc)
? Auto-hold function to freeze the reading.
? Overload protection.
? Adjustment for testing time (duration) :?1~30 minutes
? Auto-off.
? Calendar.
? Optical USB to RS-232 data transmission.
? 200 measurement results can be saved in the memory and recalled on the display.
? Safety standard: EN 61010-1?? CAT IV 600V
EN 61010-2-030
EN 61326-1



±20%

“xl68″ width=”196” height=”40″>Short circuit current

est voltage	From 500Vdc to 15kVdc Adjustable in 500V steps
Preset buttons	1kV, 5kV, 10kV, 15kV
Insulation resistance	1000GΩ/0.5kV 1000GΩ at 0.5kV ~ 30TΩ at 15kV
Accuracy	1kV: 0~200GΩ 5kV: 0~1TΩ 10kV: 0~2TΩ 15kV: 0~3TΩ	±(5%rdg+5dgt)
	1kV: 200GΩ~2TΩ 5kV: 1TΩ~10TΩ 10kV: 2TΩ~20TΩ 15kV: 3TΩ~30TΩ
Resolution	1GΩ : 0.001GΩ 10GΩ : 0.01GΩ 100GΩ : 0.1GΩ 1000GΩ : 1GΩ 10TΩ : 10GΩ 30TΩ : 100GΩ
up to 5mA
PI (Polarization Index)	V
DAR (Dielectric Absorption Ratio)	V
Voltmeter	ACV : 30~600V (50/60Hz) DCV: 30~600V Accuracy : ±(2.0%rdg+3dgt) Resolution: 1V
Current measurement	0.5nA ~ 0.55mA (Depending on the insulation resistance)
Power source	Rechargeable battery
Adapter	Input : 100-240Vac, 0.4A, 50-60Hz Output : 24Vdc, 0.62A
Dimensions	430(L) x 324(W) x 127(D)mm
Weight	Approx : 6.56kg
