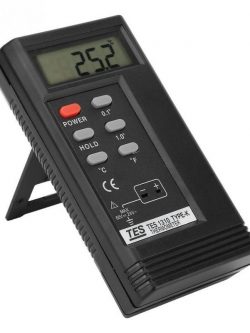

TES 1310 Temperature Meter

Description

• Function H Data Hold & Display °C/°F selection

• 0.1o/1o resolution selection

• T1 & T2 dual points display

• T1 – T2 differential

• 3-1/2 digit LCD

• Overrange 1——

• Low Battery BT



Measuring Range -50°C to 1300°C
-50°F to 1999°F Sensor K Type thermocouple Input Single (1310), Dual (1320) Resolution 50°C to 199.9°C…0.1°C
-50°F to 199.9°F…0.1°F
(Others-1°C/1°F) “131”>Accuracy 50°C to 199.9°C…0.2% rdg + 1°C
-50°F to 199.9°F…0.2% rdg + 1°F
-50°C to 1000°C… 0.3% rdg + 1°C
-50°F to 1999°F. ..0.3% rdg + 2°F
1000°C to 1300°C..0.5% rdg + 1°C
(apply to mainframe only at 23°C±5°C)

<"131">Input Protection 60V DC or 24 Vrms AC maximum input voltage on any combination ℉ input Connector. Sampling Rate 2.5 times/sec Operating Condition 0°C to 50°C (32°F to 122°F)
0 to 90% R.H. (0 to 35°C) Power Source one 9V battery Size 135mm(L)×72mm(W) ×31mm(H) Weight 157g Accessories Battery & Instruction Manual Optional Temperature
Probes Model Range(Type K(CA) THERMOCOUPLE)
TP-K01 Bead -50°C to 200°C/-58°F to 392°F
General Purpose
TP-K02 Immersion -50°C to 1000°C/-58°F to 1832°F
Liquid or gels
TP-K03 Surface -50°C to 750°C/-58°F to 1382°F
