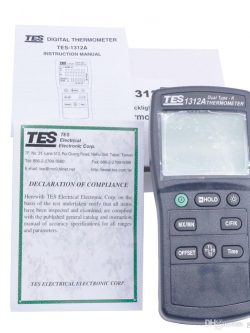

TES 1312A Thermometer

Description

Type “K” Thermocouple Input
Switchable Resolution 0.1° / 1°
With °C & °F switching
Max / MIN Function
Data Hold Function
Room Temperature Compensated
T1 & T2 dual points display
T1 – T2 differential measurement
Flip-up stand
Backlight LCD display



Measuring Range -50 to 1350°C, -58 to 1999°F Sensor K Type Thermocouple Input Dual Channel Resolution -50 to 199.9°C: 0.1°C
-50 to 199.9°F: 0.1°F Temperature Coefficient Less that 0.1 times the applicable accuracy specification per °C (°F) Input Protection 60V DC or 24 Vrms AC maximum input voltage on any Combination of input Connector Sampling Rate 2.5 times/sec Sampling Time Approx. 0.5 second Operating / Storage Conditions 0 to 40°C < 80% RH, -10 to 60°C < 70% RH Power Source 6 x AAA size Battery Size 135 mm(L) x 72 mm(W) x 31 mm(H) Weight 235g
