Description

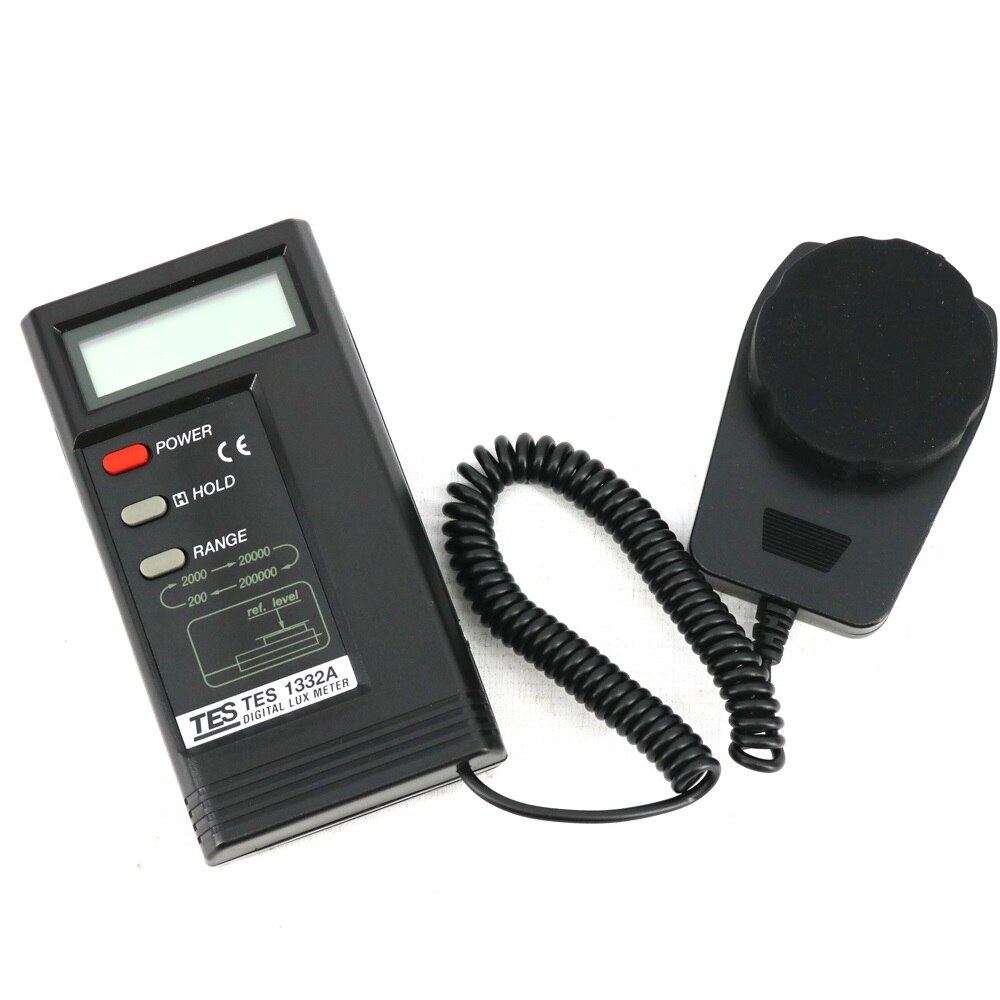

TES 1322A Lux Meter

· High accuracy and fast response
· 3 1/2Bit LCD
· The output jack for recording(TES-1332A/1334A)
· HOLD function

“161”>Monitor“161”>Overload displayResolution Repeat the testPower supply

3 1/2Bit LCD
Measuring range	20/200/2000/20000 Lux(1330A/1334A) 200/2000/20000/200000 Lux (1332A) 20000 lux-reading x 10 200000 lux-reading x 100(1330 also Footcandle for 1334A)
To the highest bit”1″
0.01 Lux(1330A,1334A) & 0.1 Lux(1332A)
Accuracy	±3% rdg ± 0.5% f.s.(<10,000 lux) ±4% rdg ± 10dgts (>10,000 lux) (To the color temperature2856 KStandard incandescent lamp, correction)	±2%
Temperature characteristics	±0.1% /
Sampling rate	Approximately 2 Times/Second
Recorder Output	DC 2V/f.s. (Full scale) (TES-1332A)
Operating and storage temperature and humidity	0°to 40 (32 to 104) < 70% R.H.
9V (A)
Optical detector size	100mm(L) x 60mm(W) x 27mm(H)
Meter size	135mm(L) x 72mm(W) x 33mm(H)
Weight	250g
Attachment	Manual,Paper Box
