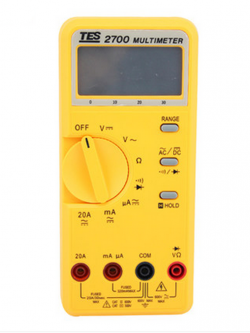

Description
‘-Autoranging and Auto-power-off
-3200 count LCD analog bar-graph
-Data-hold mode available at ohms
-Overload protection up to 600 Vrms
-Current: 320u/3.2m/32m/320m/20A
-Voltage: (AC/DC) (±0.5% rdg ±2 dgt)
320m/3.2/32/600V (DC)
3.2/32/320/600V (AC)
-Resistance:320/3.2K/32K/320K/3.2M/30MΩ
|
| Range |
320m/3.2/32/600VDC
3.2/32/320/600VAC |
| Accuracy |
DC – 0.5% rdg + 2 dgts
AC – 1.2% rdg + 4 dgts
(40-400Hz) |
| Input Impedance |
10MΩ (min) |
| Resolution |
100μV(DC)/1mV(AC) |
|
|
| Range |
320μ/3.2m/32m/320m/20A |
| Accuracy |
DC – 1% rdg + 2 dgts
AC – 1.5% rdg + 5 dgts
(40-400Hz) |
| Resolution |
0.1μA |
|
|
| Range |
320/3.2K/32K/320K/3.2M/30MΩ |
| Accuracy |
0.8% rdg + 2 dgts |
| Resolution |
0.1Ω |
|
|
| Resolution |
1mV |
| Accuracy |
1% rdg + 2 dgts |
| Max. Test Current |
0.8mA |
| Max. Open Circuit Voltage |
3.2V |
| Overload Protection |
500Vrms |
|
|
| Operation Resistance |
Below 20 Ω |
| Max. Open Circuit Voltage |
1.3V |
| Overload Protection |
500Vrms |
|
